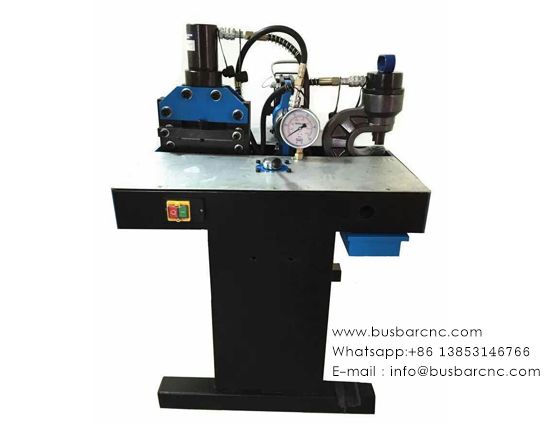

The LTMC LJMC-30A is a 630 kN rated-oil-pressure portable three-in-one busbar machine that punches, shears and bends copper and aluminum busbar up to 12 mm thick and 200 mm wide, built for field and small-shop work across Canadian electrical manufacturing. At 195 kg with a 900×700×1160 mm frame and casters, it moves to site jobs such as switchgear, substation and busway assembly where a fixed line is impractical. It runs on single-phase 220 V / 50 Hz, so on a Canadian 60 Hz site it needs a small transformer or a 50/60 Hz-rated supply. Standard dies cover Ø10.5, Ø13.8, Ø17 and Ø20.5 mm holes, covering common busbar termination patterns.
LJMC-30A — Rated oil pressure: 630 kN. Test condition: hydraulic punching, shearing and bending of copper and aluminum bar. Result: 630 kN rated oil pressure drives all three portable units. Baseline: the LJMC-30B sibling (family_ref.txt) shares the same 630 kN pressure but adds 10 kg and a wider 200 mm capacity at 12 mm.
LJMC-30A — Max busbar size: 12 mm × 200 mm. Test condition: punching, cutting and bending envelope. Result: processes bar up to 12 mm thick and 200 mm wide. Baseline: matches the LJMC-30B (12×200 mm) and the family_ref.txt 30A listing; the 30B carries the same envelope at 205 kg.
LJMC-30A — Input voltage: 220 V / 50 Hz. Test condition: single-phase shop or site supply. Result: runs on 220 V single-phase at 50 Hz. Baseline: the LJMC-30B uses the same 220 V/50 Hz input (family_ref.txt); neither is natively 600 V/60 Hz, so Canadian sites need a transformer or 50/60 Hz-rated supply.
LJMC-30A — Machine weight: 195 kg. Test condition: as-shipped portable unit. Result: 195 kg on a 900×700×1160 mm frame. Baseline: the LJMC-30B is 205 kg for the same 12×200 mm capacity (family_ref.txt), a 10 kg difference for the slightly larger build.
The LJMC-30A runs on single-phase 220 V / 50 Hz, not directly on Canadian 600 V / 60 Hz three-phase. On a Canadian site feed it through a small step-down transformer or a 50/60 Hz-rated supply; confirm the supply arrangement with our team.
Being a 195 kg portable unit, it ships in a wooden case by ocean or air freight to Canadian ports, then clears customs with your broker. Confirm current transit and clearance timing with our team before ordering.
Standard dies (Ø10.5, Ø13.8, Ø17, Ø20.5 mm) and common wear parts ship with or can be reordered for the machine. We support Canadian buyers by video and can advise on die sets and a short operator training session; confirm spare-part stock and training format with our team.
LJMC-30A
Product Information
Product Image
Product Introduction
LJMC-30A has three processing units: punching, shearing/cutting and bending. And it's mainly used for processing copper and aluminum busbar in differernt specifications.
]
Product Processing Samples
PUNCHING / CUTTING / BENDING
The max. processing width is 200mm.
The max. processing thickness is 12mm.
Product Application
The machine uses a single-phase 220v ordinary power supply, which can be used in any occasion, such as on-site construction of large workshops, transmission, distribution work, electrical manufacturing plants such as power distribution cabinets and switch canbinets.
High and low voltage switchgear, substation, busway, bridge, electrical switch, communication equipment, household appliances, shipbuilding, office automation equipment, elevator manufacturing, chassis manufacturing and other electrical equipment manufacturing industry. Most suitable for making large electric control box and transmission and distribution construction project construction site use.
Single Processing unit
Company Advantages
Our Factory
We have professional engineers to serve you form the beginning to the end.
We can guarantee the product quality and service quality.
Our Certifications
Our Business Partner
Such ABB, Siemens, Schneider and EDK.
Our Visitors
Our products are sold in more than 100 countries all around the world.
Including the United States, Britain, Germany, Russia, Canada, Belgium, Argentina, New Zealand, Czech Republic, Romania, Ireland, Peru, Chile, Australia, Hungary, Mexico, Slovenia, Malaysia, Brazil, Vietnam, Saudi Arabia, Pakistan, etc.
Due to its superior product performance, powerful functions, stable quality, and timely after-sales service, it has won unanimous praise from customers, also has achieved long-term cooperation and has always maintained friendly contacts.
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 195 |
