Product :CNC Busbar Milling Machine Serial：CNCDMN-200AMain Function: This machin
The LTMC CNCDMN-200A is a dual-head, 11-axis CNC busbar corner-milling center built for Canadian switchgear and transformer production lines that need fully automated, hands-off chamfering of copper and aluminum bars. Its dual-gantry spindle mills both ends without manual intervention, and conveyors at each end align with your upstream and downstream busbar equipment for seamless line integration. The unit runs as a standalone machine or as part of a complete fabrication cell for high-voltage switchgear, switch cabinets and box-type substations.
CNCDMN-200A — CNC control axes: 11-axis. Test condition: dual-gantry spindle milling with no manual intervention. Result: fully automated corner milling coordinated across 11 CNC axes, integrating both-end conveyors with upstream and downstream equipment. Baseline: the CNCDMN-200A double-head row in family_ref.txt confirms 11-axis CNC and dual-gantry design; the single-head CNCMN-200A uses a 2-axis CNC, so this dual-head unit adds multi-axis coordination for line integration.
Yes — conveyors at both ends align with your upstream and downstream busbar equipment for a hands-off fabrication cell. Confirm line-layout, conveyor height and incoming supply requirements with our team.
It is engineered for North American switchgear and transformer lines and operates without manual intervention for worker safety. Confirm any specific documentation or assembly standards with our team.
Spare parts, dual-gantry spindle service and commissioning support are available for Canadian installations. Confirm spare-part stock and lead times with our team.
Product :
CNC Busbar Milling Machine
Serial：CNCDMN-200A
Main Function:
This machine is a high-efficiency, automated busbar corner milling machine controlled by a computer (11-axis CNC),
specifically designed for fully CNC-controlled comer milling of copper and aluminum busbars.
Main Feature:
The equipment uses a dual-gantry spindle processing method, and during the busbar processing, no manual
intervention is required. It offers advantages such as fast processing speed, high precision, and high efficiency.
This equipment is mainly used for production lines but can also be used as a standalone machine.
The conveyors at both ends can be aligned with upstream and downstream equipment for seamless integration,
fully achieving automated production line operations. It is widely used in industries such as low and high-voltage
switchgear, switch cabinets, and box-type substations.

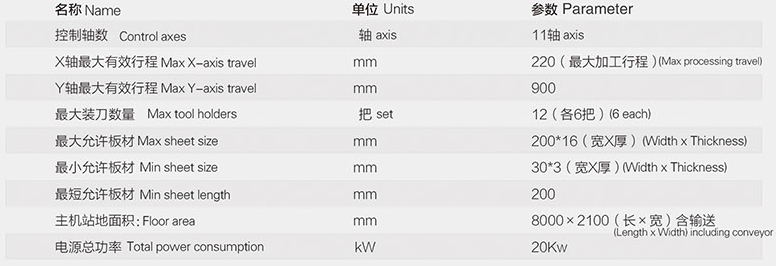

Technical Parameters:

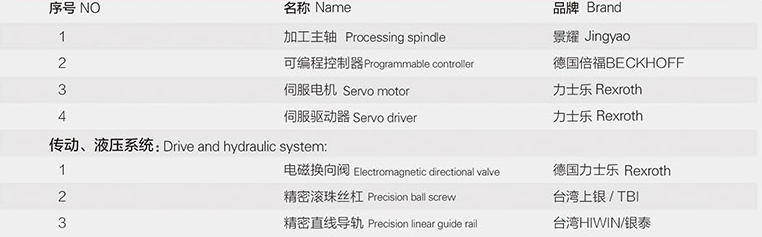

Optional Accessories:
