SXC30-750 hydraulic presses Sheet metal processing machineMain Features:busbar p
The LTMC SXC30-750 is a 300 kN hydraulic punching press with a 750 mm throat depth, built for Canadian switchgear and panel shops that need to punch round and oblong holes in copper, aluminium busbar and sheet up to 6 mm thick without a full CNC line. It uses a stress-relieved welded steel bed, PLC control with a digital axis for manual positioning, and a high-flow gear pump that reaches a 12 strokes/min step speed. The 750 mm throat reaches wide busbar and enclosure flanges without repositioning, and the machine stops safely when unattended. It wires to 600 V / 60 Hz Canadian shop power through the supplied control panel for low-volume or job-site fabrication.
SXC30-750 — Nominal pressure: 300 kN. Test condition: hydraulic punching press on copper/aluminium busbar and sheet with PLC digital-axis control. Result: 300 kN nominal pressure drives the punch through up to 6 mm stock. Baseline: family reference lists the same 300 kN for SXC30-750 and its sibling SXC30-550; both share the rating, so pressure is not the differentiator between the two. Canadian shops size it for 600 V busbar holes without a full CNC line.
SXC30-750 — Maximum processing diameter: 60 mm. Test condition: punching round and oblong holes in busbar with the selected die. Result: maximum hole diameter 60 mm. Baseline: family reference shows 60 mm max diameter for both SXC30-750 and SXC30-550; matched to the 6 mm max thickness. This covers typical 600 V switchgear lug and joint holes for Ontario and Quebec panels.
SXC30-750 — Maximum processing thickness: 6 mm. Test condition: punching copper/aluminium busbar at the rated 300 kN and 12 strokes/min step speed. Result: punches stock up to 6 mm thick. Baseline: family reference lists 6 mm max thickness for SXC30-750 and SXC30-550; the 3-in-1 303U-3 family tops out at 12 mm, so this press suits thinner busbar and sheet. Use it for light busbar and enclosure punching on 600 V / 60 Hz shop power.
SXC30-750 — Throat depth: 750 mm. Test condition: throat reach from the column to the punch center. Result: 750 mm throat depth. Baseline: family reference lists 750 mm for SXC30-750 versus 550 mm for the SXC30-550 sibling — the 750 mm model reaches wider busbar and panel flanges without repositioning. For Canadian switchgear builders the deeper throat means fewer clamp moves on wide enclosures.
The SXC30-750 is a 300 kN hydraulic press with a PLC and digital axis that Canadian shops wire to 600 V / 60 Hz three-phase through the supplied control panel. Confirm the exact motor and starter rating with our team. No CSA or UL product certification is claimed on this page.
The SXC30-750 punches busbar and sheet that goes into switchgear assembled to CSA C22.2 in Canada and UL in the US. Share your hole range and documentation requirements and our team will confirm the tooling.
The SXC30-750 ships from the LTMC line; confirm current lead time, freight and Incoterms with our team. Dies, seals, the gear pump and PLC parts are stocked for service in Ontario and Quebec, and training on manual positioning is arranged at commissioning. The 750 mm throat model is built to order.
SXC30-750 hydraulic presses Sheet metal processing machine
Main Features:

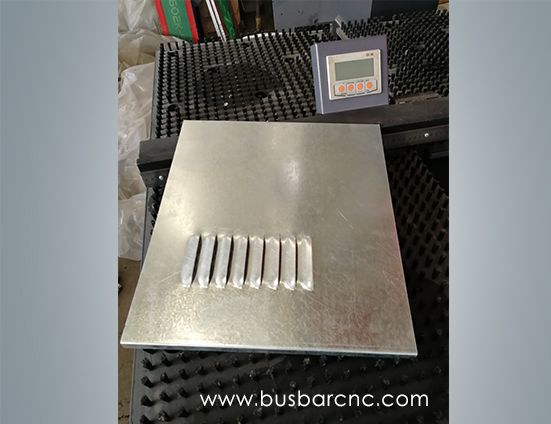

sheet metal half-shear button
1.This busbar processing machine is mainly to punching press
2.Steel plate welded bed,stress annealing treatment after welding, to ensure the rack is not deformed after the long-term used.
3.PLC controlling, with digital axis system.Easy to carry out artificial positioning.The machine can be stopped at the time of unmanned operation.
5.High flow gear pump,processing with speed,Step speed can reach12 times/min.
Nominal Pressure
300KN
Max Processing Diameter
60MM
Max Processing Thickness
6MM
Throat Depth
750MM
