Enhance your shop‘s traceability with our heavy-duty Pneumatic Dot Peen Marking Machine, specifically designed for copper and aluminum busbar processing. Ideal for Canadian electrical equipment manufacturers, this system delivers permanent, high-contrast marks for serial numbers, logos, and 2D data matrix codes. Compatible with automated CNC busbar lines. Rugged, reliable, and built to withstand North American industrial standards. Contact us for local Canadian shipping and support.
The LTMC LT-PM100 is a pneumatic dot-peen marking system built for Canadian switchgear, transformer and panelboard shops that need permanent, high-contrast serial numbers, logos and 2D Data Matrix codes on copper and aluminum busbars. It marks a 150 × 100 mm area at 3–5 characters per second with adjustable depth of 0.1–1.0 mm and repeat accuracy of 0.02 mm. Running on 110 V/220 V single-phase 50–60 Hz with 0.3–0.6 MPa air pressure and an HRA92 needle, it handles 5–15 mm copper and aluminum bars and integrates with 3-in-1 busbar lines.

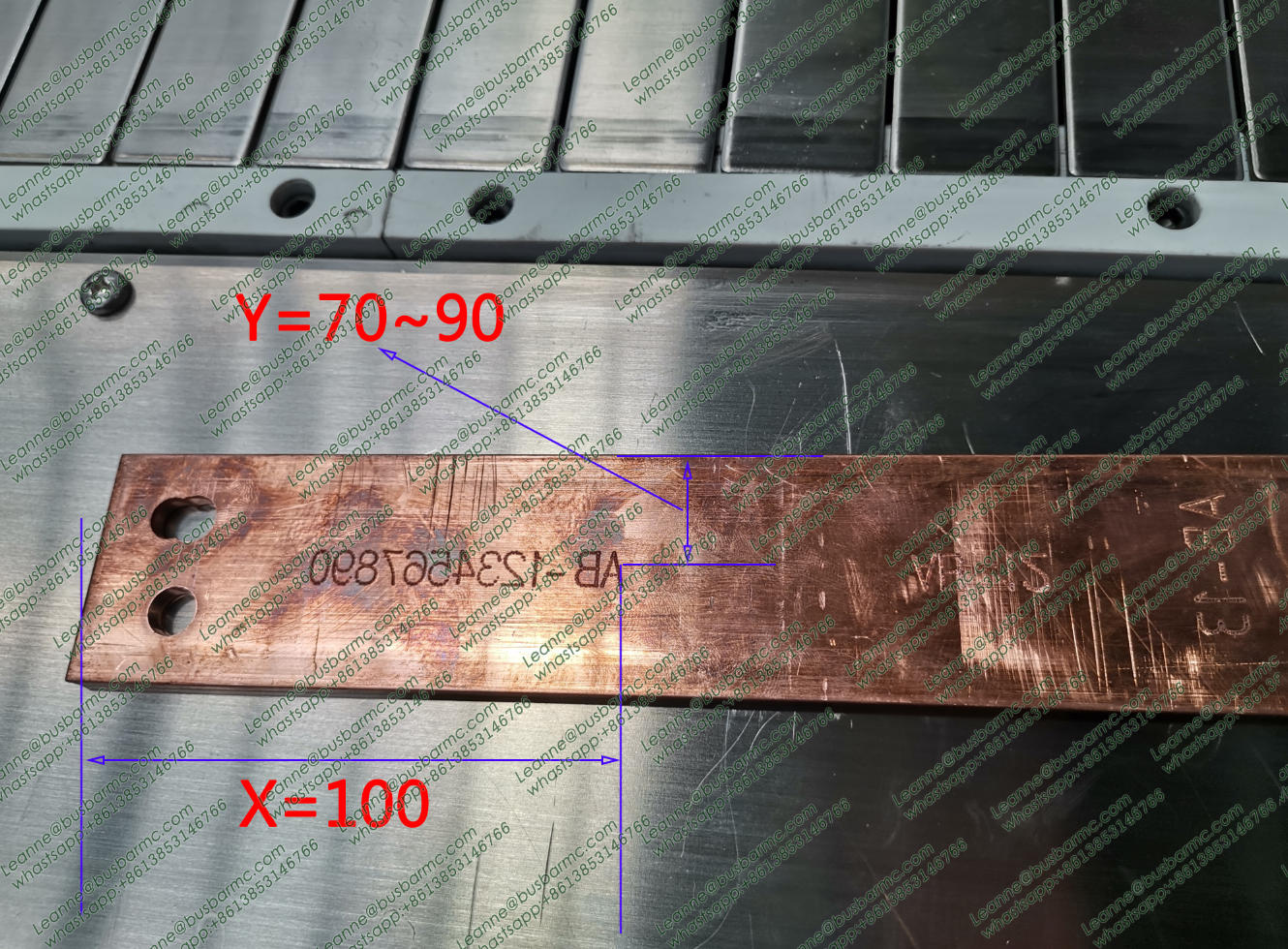

LT-PM100 — Marking area: 150 × 100 mm. Test condition: dot-peen marking zone on copper/aluminum busbar. Result: 150 × 100 mm markable area, customizable. Baseline: matches the LT-PM100 row in family_ref.txt (150 × 100 mm).
LT-PM100 — Marking speed: 3–5 characters per second. Test condition: dot-peen text engraving. Result: 3–5 characters per second. Baseline: matches the LT-PM100 row in family_ref.txt (3–5 characters/s).
LT-PM100 — Marking depth: 0.1–1.0 mm. Test condition: engraving depth on copper/aluminum, adjustable. Result: 0.1–1.0 mm depth. Baseline: matches the LT-PM100 row in family_ref.txt (0.1–1.0 mm).
LT-PM100 — Repetition accuracy: 0.02 mm. Test condition: CNC repeat positioning of the stylus. Result: ±0.02 mm repeat accuracy. Baseline: matches the LT-PM100 row in family_ref.txt (0.02 mm).
LT-PM100 — Air pressure requirement: 0.3–0.6 MPa. Test condition: pneumatic supply to the marking head. Result: 0.3–0.6 MPa clean, dry air. Baseline: matches the LT-PM100 row in family_ref.txt (0.3–0.6 MPa); the fiber laser marker (aid 200) needs no air supply.
No — the LT-PM100 runs on 110 V/220 V single-phase, 50–60 Hz, so it plugs into a standard shop outlet rather than the 600 V busbar machine supply. Confirm your site voltage with our team.
Yes — it engraves CSA/UL-compliant logos, serialized batch codes and 2D Data Matrix for asset tracking, and the structural indentation survives powder-coating or plating. Confirm your logo file and code format with our team.
Spare tungsten-alloy pins (2 sets supplied), air regulator/filter and control cabinet are stocked, and it integrates with our 3-in-1 busbar machines. Confirm spare-part lead times with our team.

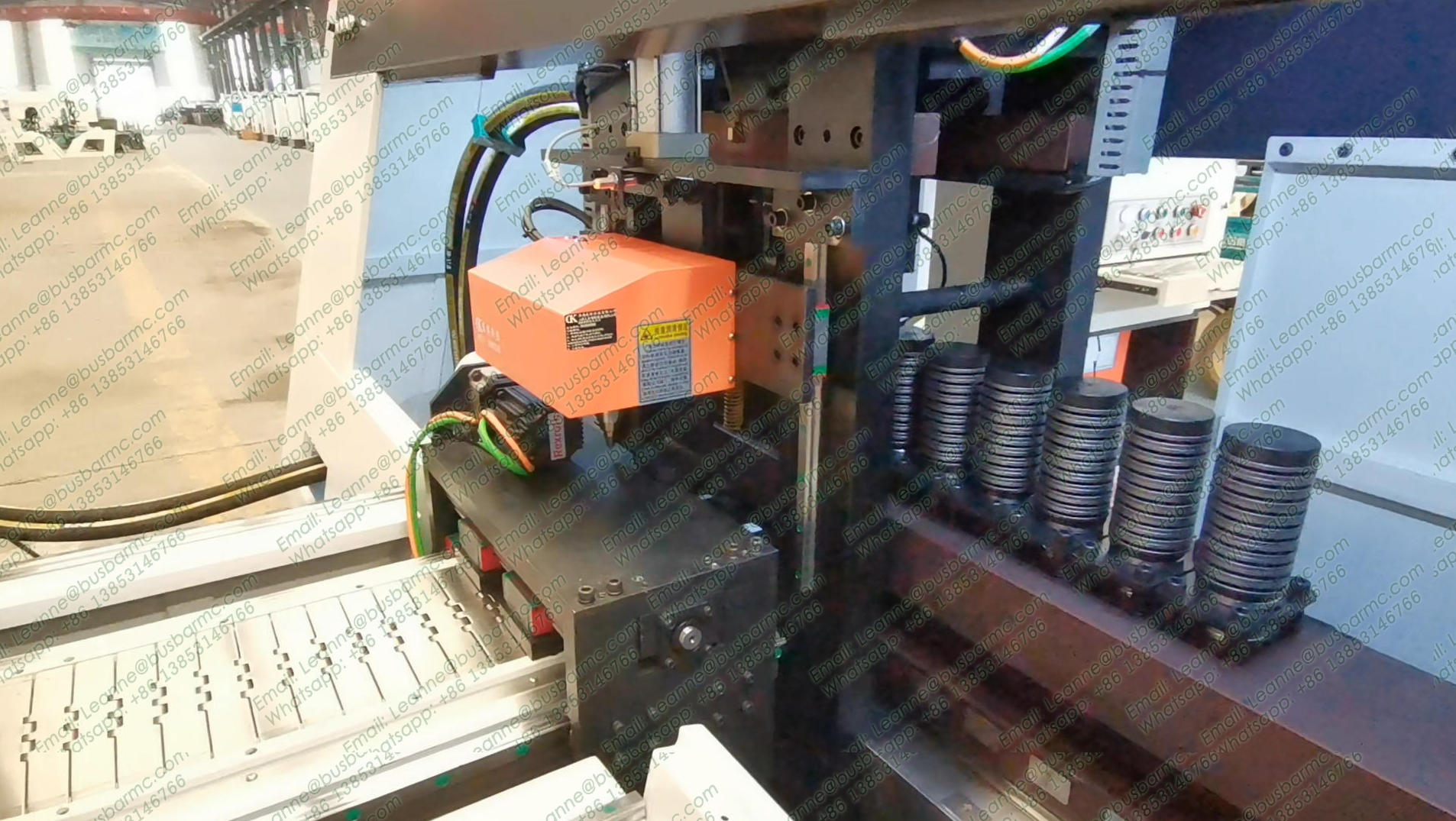

This high-performance Pneumatic Marking Machine is seamlessly integrated with our advanced busbar machines, specifically engineered to deliver rapid, high-contrast, and permanent dot-peen identification on Copper and Aluminum Busbars. This system is the gold standard for Canadian electrical fabrication facilities requiring automated part tracking during high-volume punching, bending, and shearing operations.
Integrated Dot-Peen Technology: Purpose-built for high-speed busbar production lines.
Material Versatility: Optimized for Copper & Aluminum bars (5mm–15mm thickness).
Versatile Data Marking: Precisely engraves alphanumeric text, unique serial numbers, batch codes, and CSA/UL-compliant logos.
Industrial Grade Durability: High-impact marking head ensures deep engraving for lifetime legibility even after coating or plating.
Plug-and-Play Integration: Fully compatible with our 3-in-1 busbar machines for a streamlined workflow.
Low-Maintenance Design: Ruggedized structure designed for the 24/7 duty cycles of Canadian manufacturing plants.
| Technical Parameter | Specifications |
|---|---|
| Model Type | LT-PM100 (Pneumatic) |
| Marking Area | 150mm x 100mm (Customizable) |
| Marking Speed | 3-5 characters per second |
| Marking Depth | 0.1mm - 1.0mm (Adjustable for Copper/Aluminum) |
| Air Pressure Requirement | 0.3MPa - 0.6MPa |
| Voltage / Frequency | 110V/220V 50-60Hz (Single Phase) |
| Repetition Accuracy | 0.02mm |
| Hardness of Marking Needle | HRA92 |
This automated marking solution is essential for the following Canadian industrial sectors:
Electrical Switchgear Manufacturing: Ensuring accurate phase marking and safety labeling.
Power Distribution Cabinet Production: Critical for panel board traceability.
Transformer Component Factories: High-precision identification of heavy-duty conductors.
Renewable Energy (Wind/Solar): Marking busbars for inverter and battery storage systems.
Our systems are built to enhance the efficiency of your busbar machine workflow, reducing human error and meeting stringent Canadian quality control standards.

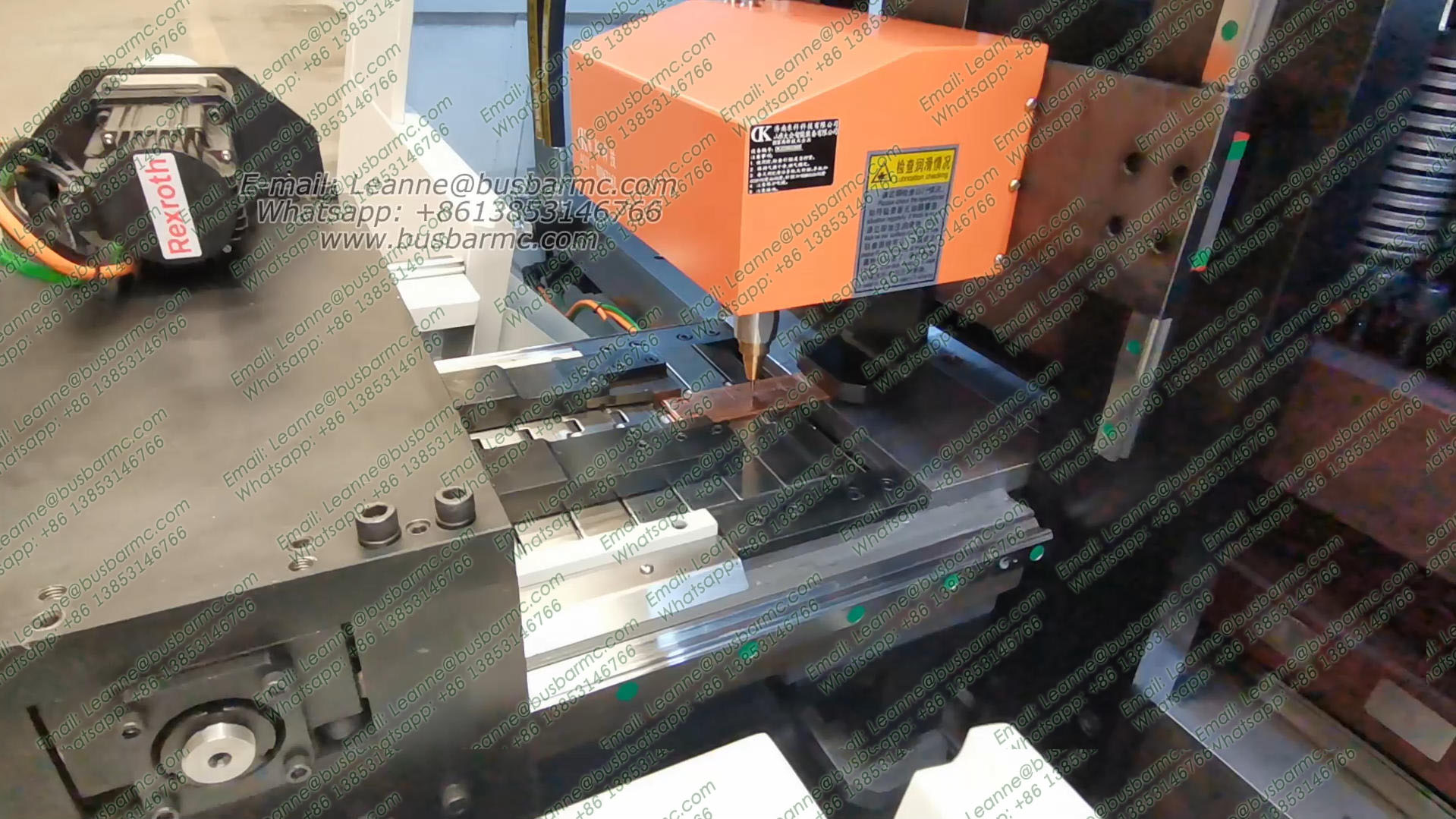

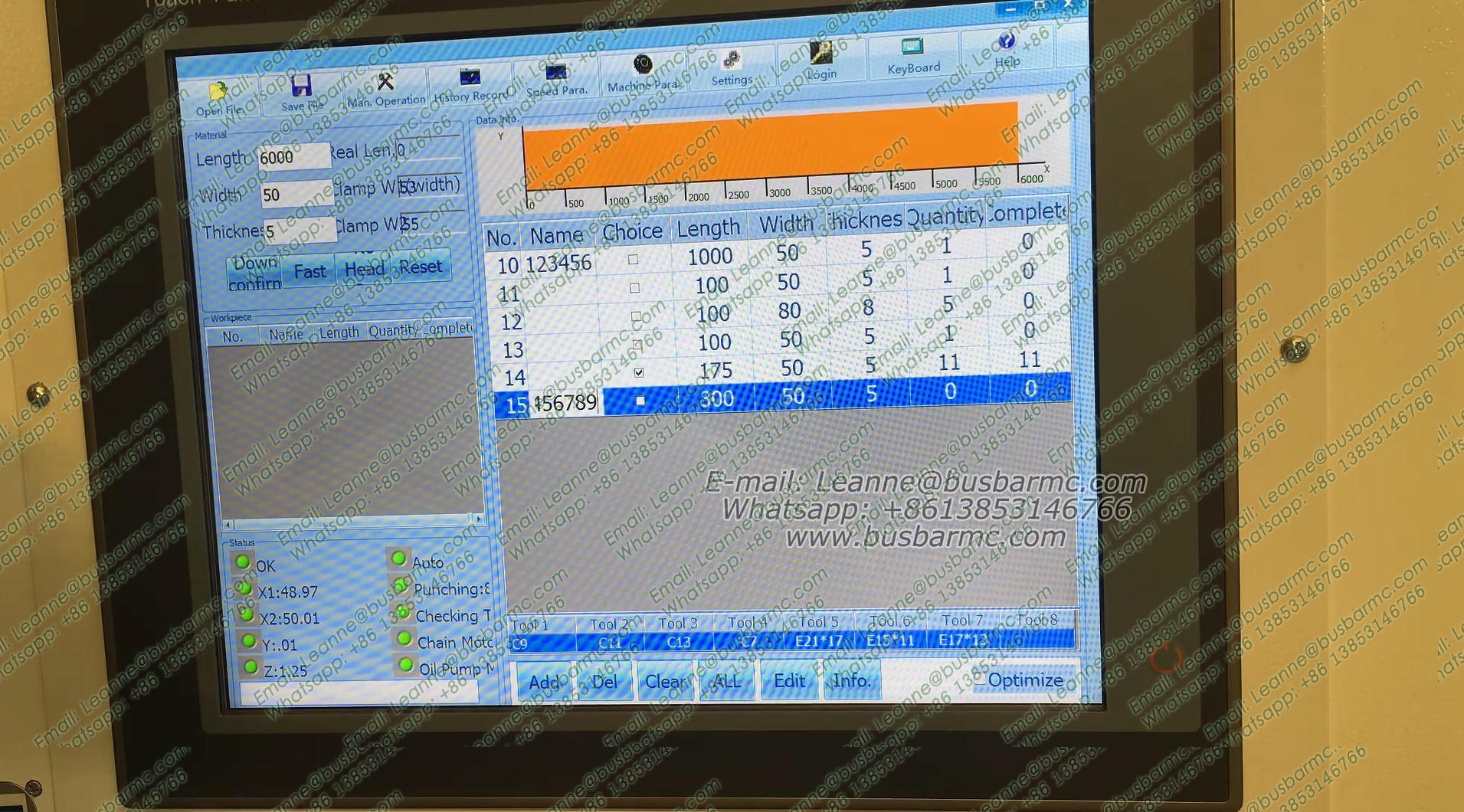

| Item Name | Quantity | Notes |
|---|---|---|
| Pneumatic Marking Head | 1 Unit | High-frequency vibration stylus |
| Tungsten Alloy Marking Pin | 2 Sets | Replacement pins for hardened materials |
| Control Cabinet (PLC Integrated) | 1 Unit | Pre-loaded with marking software |
| Air Regulator & Filter | 1 Set | Ensures clean air for the pneumatic system |
| Can the machine mark QR codes or Data Matrix codes for asset tracking? | Yes. Our dot peen marking software supports 2D Data Matrix and QR codes, which are increasingly required by Canadian electrical contractors for digital twin and asset management. |
| Is the marking permanent enough for outdoor switchgear? | Absolutely. Unlike inkjet or thermal labels, the pneumatic indentation is structural. Even if the busbar is powder-coated or galvanized later, the marking remains legible. |
| Does the machine require a constant internet connection? | No, the system operates as a standalone CNC unit. However, data can be imported via USB or LAN for automated batch marking in smart factory environments. |
| What maintenance is required for the pneumatic head? | Maintenance is minimal. Regularly cleaning the stylus and ensuring the air supply is free of moisture will ensure a long service life in heavy industrial use. |
