HQ40-BC CNC Copper Busbar Cutting Bending MachineProductCNC Copper Busbar Bendin
The LTMC HQ40-BC is a 300 kN CNC busbar cutting and Z-bending machine for Canadian switchgear and panel shops that shear and form copper and aluminum busbar up to 210 mm wide and 10 mm thick. Its single-blade shear leaves a flat, burr-free edge, and the height-adjustable Z-bending unit uses a linear displacement sensor fed back to the CNC to form accurate Z bends on bars up to 3200 mm long without manual measurement. At 300 kN it slots between a saw and a punch/shear line for short-run and custom enclosures. Standard LJMC dies and CNC program templates keep setup quick for low-volume Canadian fabricators.
HQ40-BC — Maximum punching force: 300 kN. Test condition: cut and Z-bend units on copper/aluminum busbar. Result: 300 kN rated force. Baseline: matches family_ref.txt HQ40-BC (300 kN); same force class as the SXC30 hydraulic press line.
HQ40-BC — Process envelope: 210 mm wide × 10 mm thick × 3200 mm long. Test condition: single-blade shear and CNC Z-bend unit. Result: max 210 mm width, 10 mm thickness, 3200 mm length. Baseline: matches family_ref.txt HQ40-BC (210 mm wide, 10 mm thick, 3200 mm long); covers wide enclosure busbar.
HQ40-BC — Maximum tensile height: 30 mm. Test condition: Z-bending unit forming height. Result: up to 30 mm tensile height. Baseline: matches family_ref.txt HQ40-BC (30 mm max tensile height); defines Z-bend standoff for connectors.
HQ40-BC — Overall size: 9600×700×1400 mm. Test condition: installed cut/bend line. Result: 9600 mm long in-line layout. Baseline: matches family_ref.txt HQ40-BC; long in-line footprint for 3200 mm bar handling.
Its 300 kN cut and Z-bend units run on hydraulic/CNC power fed from 600 V, 60 Hz through a transformer. Confirm the exact supply and control voltage with our team.
The HQ40-BC is supplied for busbar that goes into assemblies built to CSA C22.2 in Canada and UL in the US. Share your component and wiring requirements and our team will confirm the build options for your shop.
Delivery and clearance depend on configuration and port, so confirm current lead time and Incoterms with our team. CNC program templates, dies and training are arranged at commissioning.
HQ40-BC CNC Copper Busbar Cutting Bending Machine
Product
CNC Copper Busbar Bending Machine
Serial
HQ40-BC
Main Function:
To cutting bending the copper/aluminum busbar ect.
Main Feature:

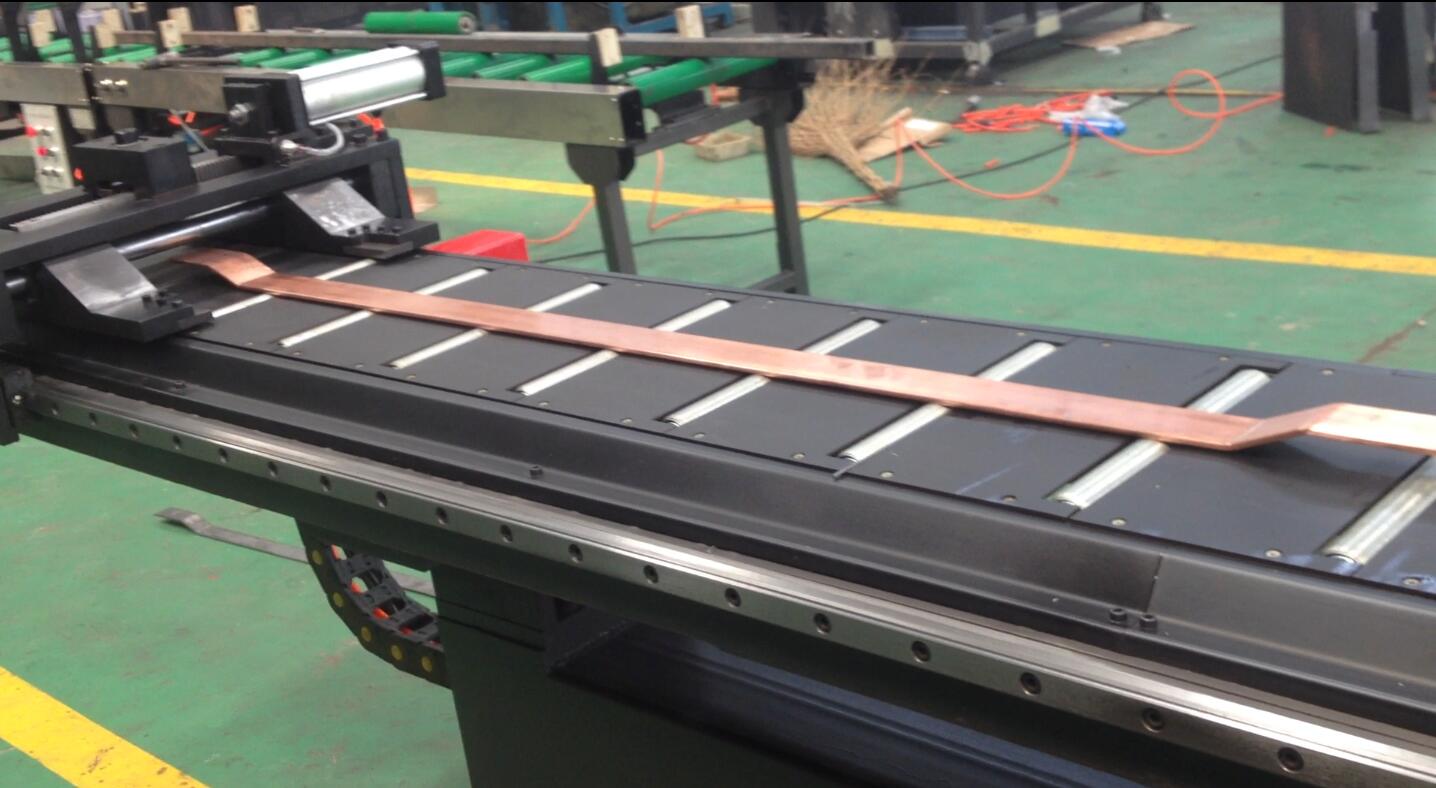

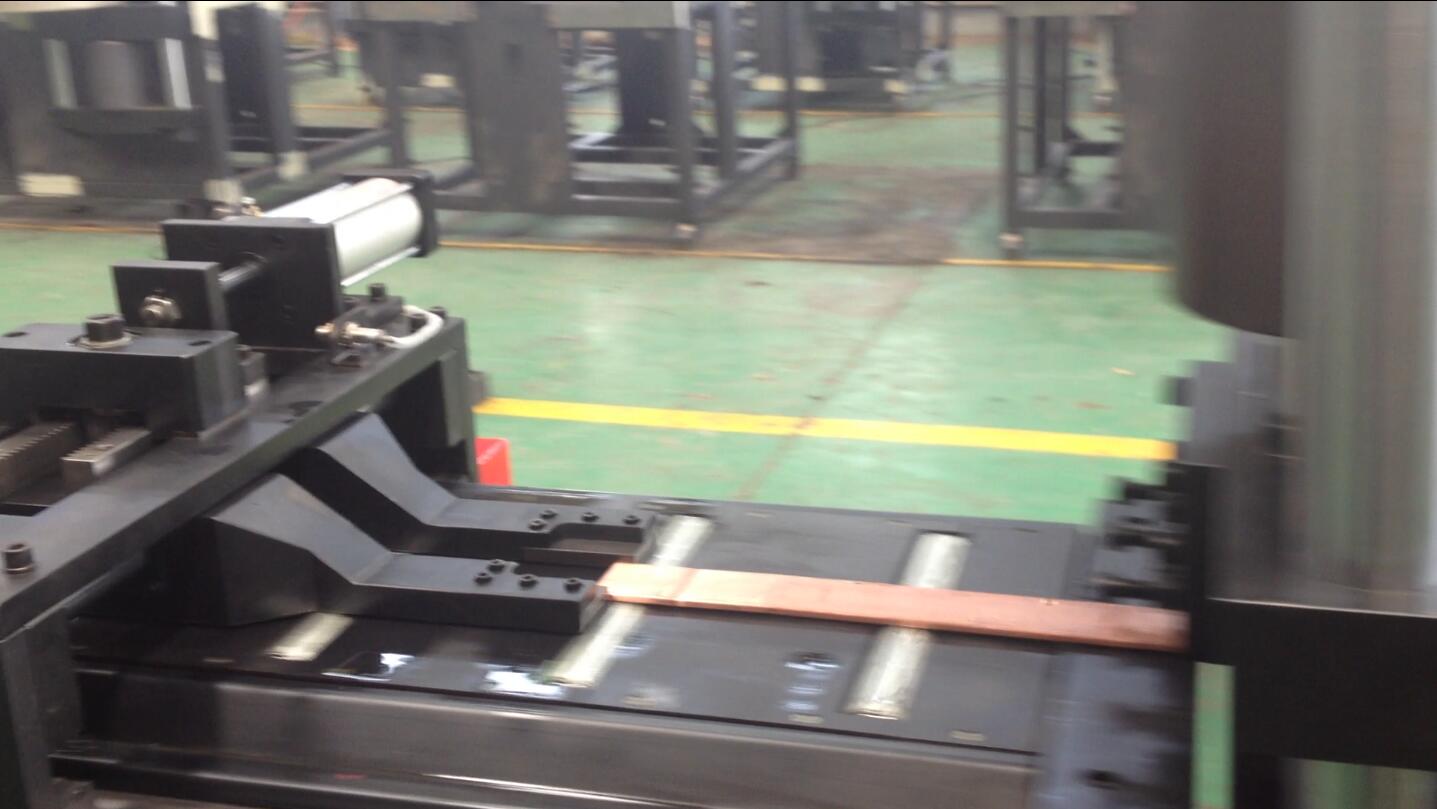

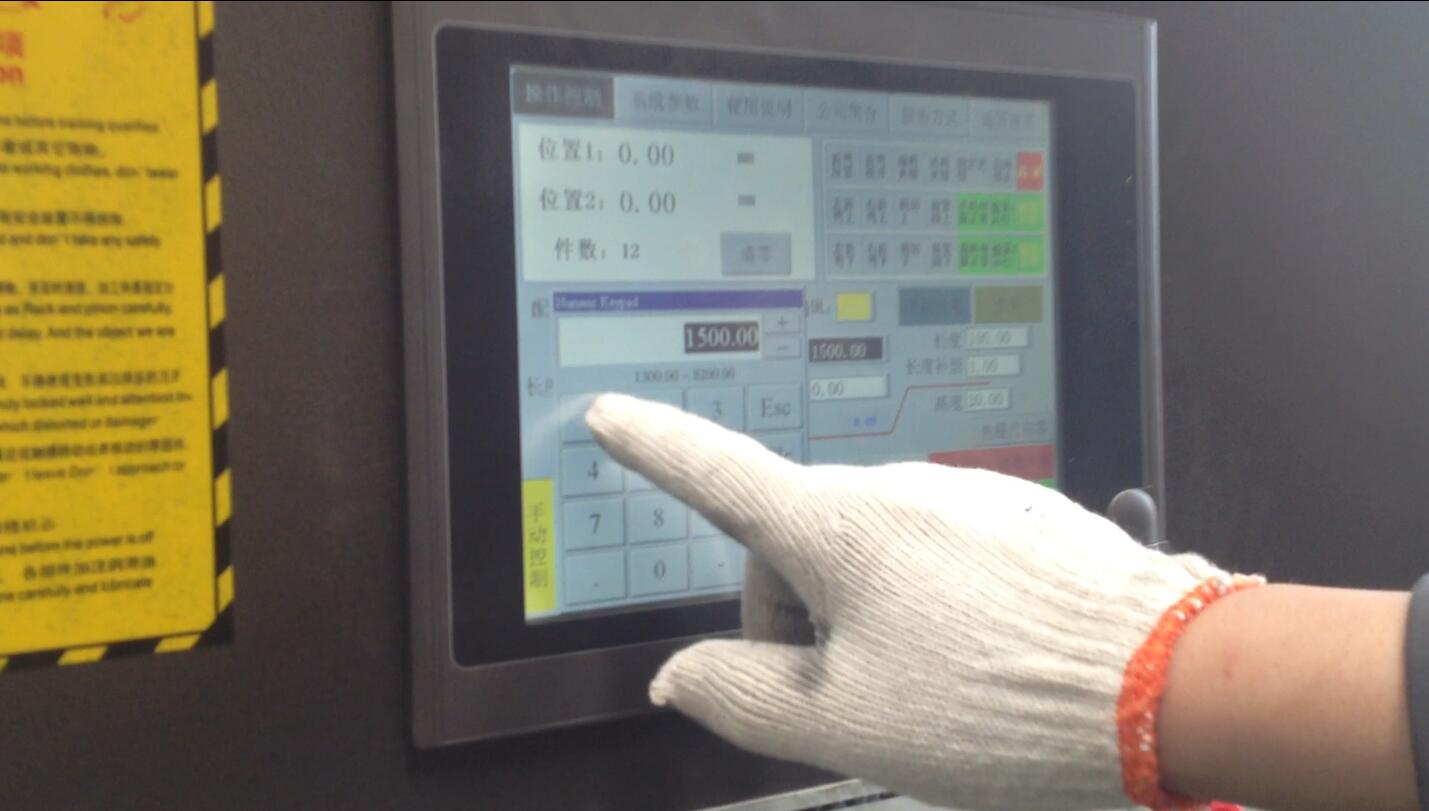

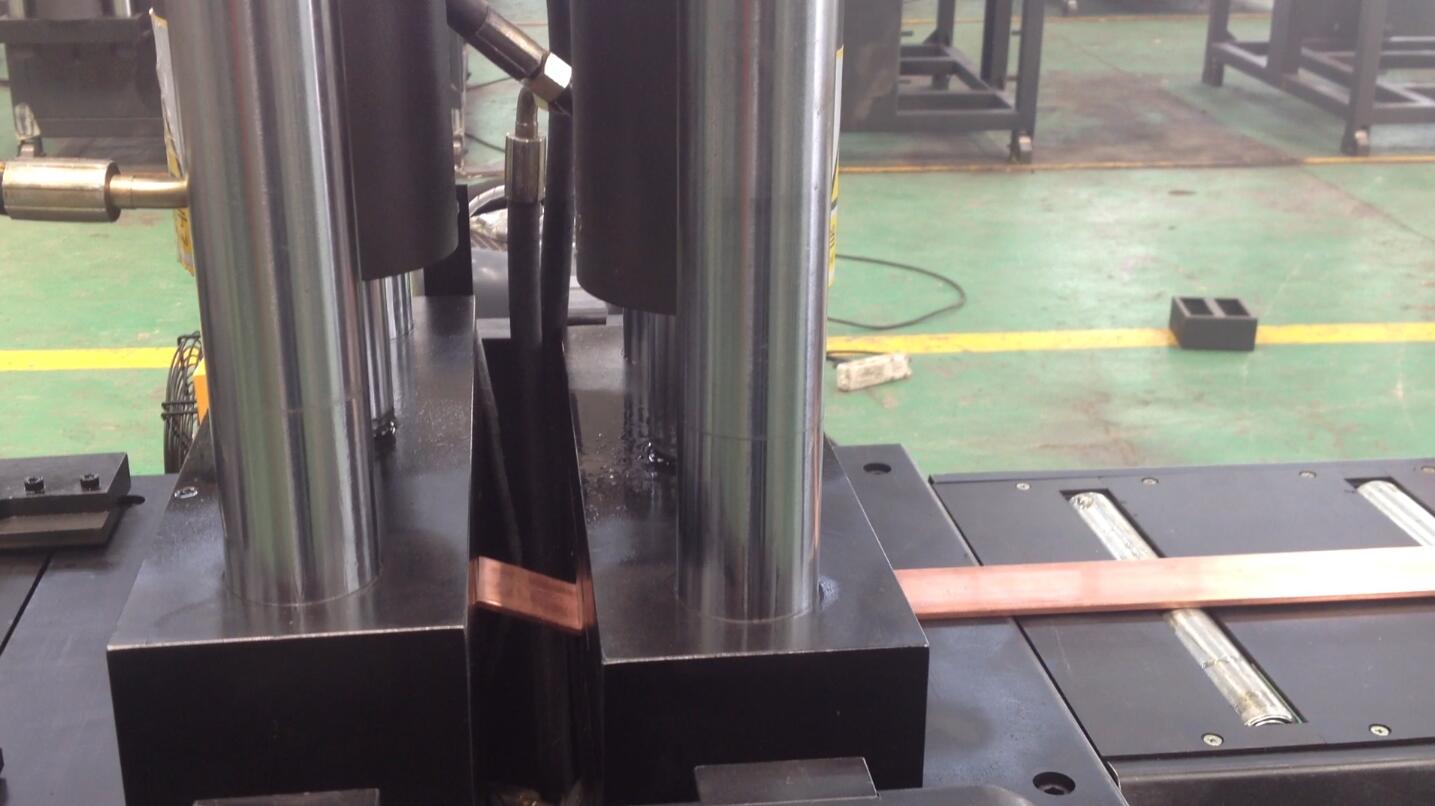

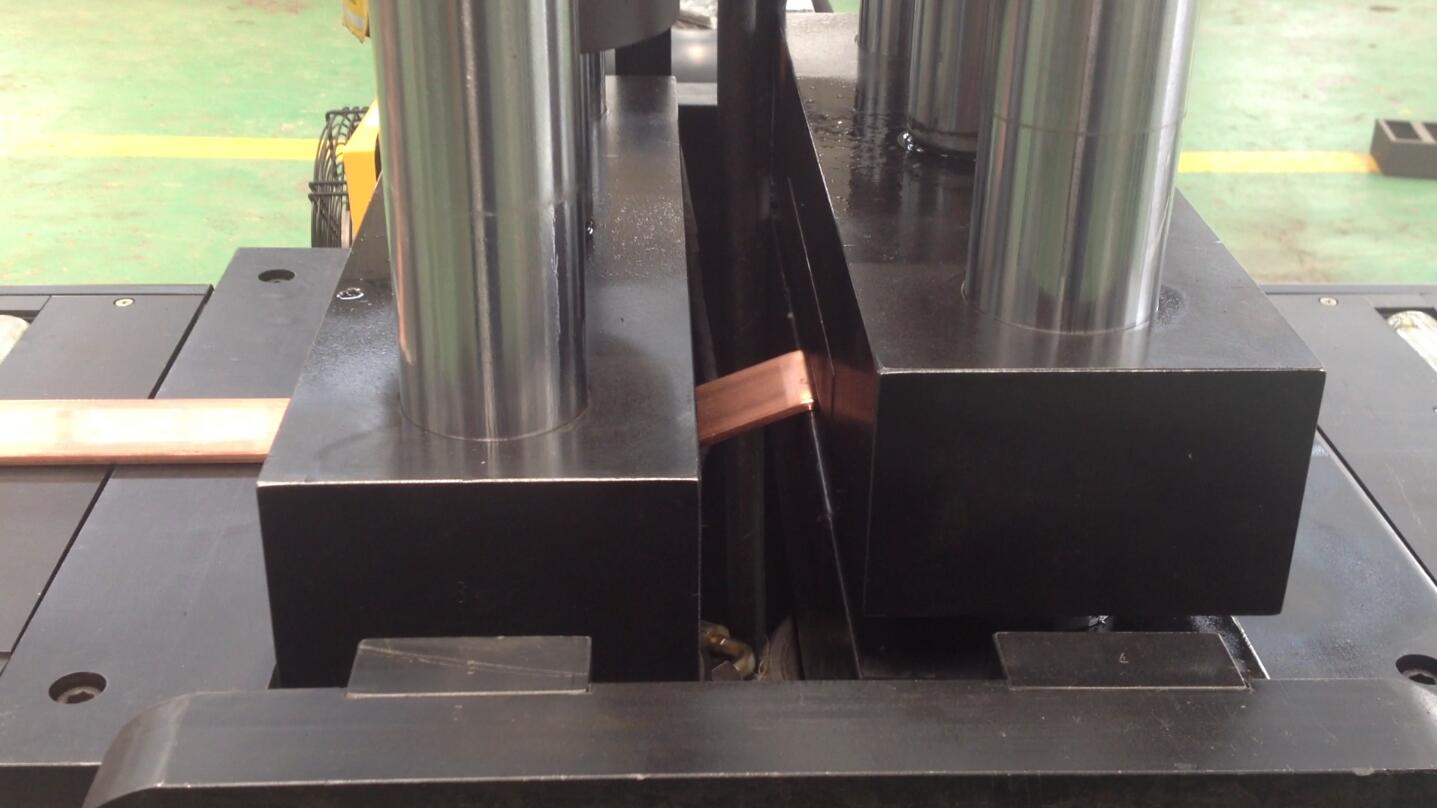

HQ40-BC CNC copper busbar cutting bending machine has a cut, bend two units, can achieve different specifications of the copper row of shear and "Z" type bending. Cutting unit with single-blade shear, notch flat, no burr, can be processed with a maximum width of 210 thickness of 10mm copper; "Z" bending forming unit, the unit is highly adjustable CNC machining unit, closed by a straight line Displacement sensor feedback to the numerical control system, and can be adjusted according to the measured value adjustment can be processed with a auto bender machine maximum width of 210, thickness 10mm, length of 3200mm copper.
Tech Paramete:
Max. Punching Force (KN): 300KN
Max. Process Width (MM): 210mm
Max. Process Thickness (MM): 10mm
Max. Process Length (MM): 3200mm
Max.Tensile Height (MM):30mm
Overall size(MM): 9600×700×1400mm
